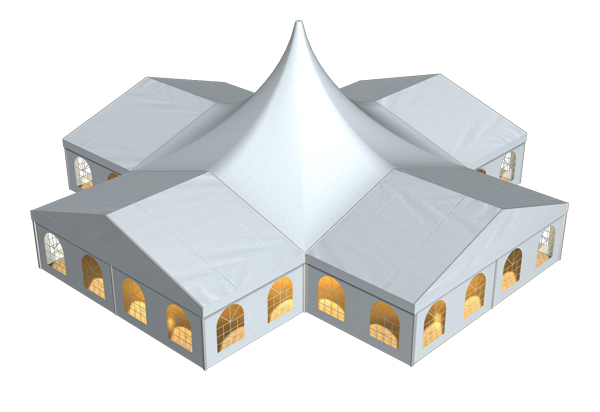

| Wine Tent Giga 10M Quattro |
<DIV style="TEXT-ALIGN: left; PADDING-BOTTOM: 0px; TEXT-TRANSFORM: none; BACKGROUND-COLOR: rgb(255,255,255); TEXT-INDENT: 0px; MARGIN: 0px; PADDING-LEFT: 0px; PADDING-RIGHT: 0px; FONT: 12px Helvetica, Arial, sans-serif; WHITE-SPACE: normal; LETTER-SPACING: normal; COLOR: rgb(0,0,0); WORD-SPACING: 0px; PADDING-TOP: 0px; -webkit-text-stroke-width: 0px" class="field technicaldata">
<DIV style="PADDING-BOTTOM: 0px; MARGIN: 0px 0px 20px; PADDING-LEFT: 0px; PADDING-RIGHT: 0px; FONT-FAMILY: Helvetica, Arial, sans-serif; FONT-SIZE: 16px; FONT-WEIGHT: bold; PADDING-TOP: 0px" class=label>Technical data</DIV>
<DIV style="PADDING-BOTTOM: 0px; MARGIN: 0px; PADDING-LEFT: 0px; PADDING-RIGHT: 0px; FONT-FAMILY: Helvetica, Arial, sans-serif; PADDING-TOP: 0px" class=value>
| Clear-span width |
1000 cm |
| Side height |
240 cm, 300 cm |
| Ridge height |
422 cm, 482 cm |
| Highest point |
902 cm, 962 cm |
Roof pitch
|
20กใ |
| Bay distance |
500 cm |
| Gable uprights |
1 gable upright (per end) |
| Longest component |
525 cm |
| Minimum tent length |
As shown |
| Maximum tent length |
No limit |
| Main profile |
130 mm x 70 mm x 3 mm |
| Eave / corner connection |
Internal eave insert |
| Max. allowed wind speed to DIN |
100 km/h |
| Wind Load |
0.5 kN/m² |
| Extension / lean-to options |
Octagonal wine tents can also be arranged on each end |
| Flooring options |
Aluminium cassettefloor with plywood or full aluminiumboards |
| Cover |
RÖDER No. 1: PVC-coated polyester textile, flame retardant to DIN 4102 B1, M2 |
| Special design |
Portal beams can be used in place of cross struts | </DIV></DIV>
