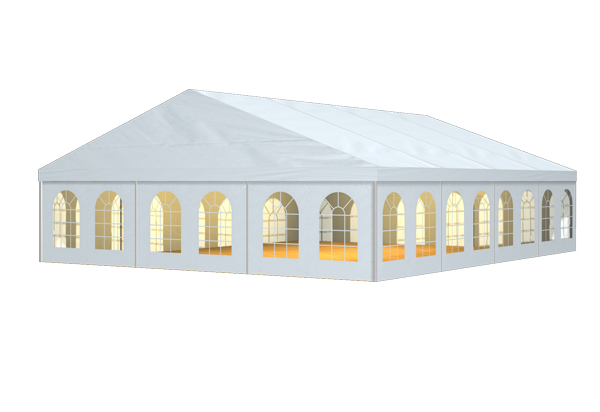

| Party Tent 10M |
<DIV style="POSITION: relative; TEXT-ALIGN: left; PADDING-BOTTOM: 0px; TEXT-TRANSFORM: none; BACKGROUND-COLOR: rgb(255,255,255); TEXT-INDENT: 0px; MARGIN: 0px; PADDING-LEFT: 10px; PADDING-RIGHT: 10px; FONT: 12px Helvetica, Arial, sans-serif; WHITE-SPACE: normal; LETTER-SPACING: normal; COLOR: rgb(0,0,0); WORD-SPACING: 0px; PADDING-TOP: 10px; -webkit-text-stroke-width: 0px" class=inside>
<DIV style="PADDING-BOTTOM: 0px; MARGIN: 0px; PADDING-LEFT: 0px; PADDING-RIGHT: 0px; FONT-FAMILY: Helvetica, Arial, sans-serif; OVERFLOW: hidden; PADDING-TOP: 0px" id=product-details class="mod_article block">
<DIV style="PADDING-BOTTOM: 0px; MARGIN: 0px; PADDING-LEFT: 0px; PADDING-RIGHT: 0px; FONT-FAMILY: Helvetica, Arial, sans-serif; OVERFLOW: hidden; PADDING-TOP: 0px" class="mod_catalogreader block">
<DIV style="PADDING-BOTTOM: 0px; MARGIN: 0px; PADDING-LEFT: 0px; PADDING-RIGHT: 0px; FONT-FAMILY: Helvetica, Arial, sans-serif; PADDING-TOP: 0px" class=layout_full>
<DIV style="BACKGROUND-IMAGE: none; PADDING-BOTTOM: 0px; MARGIN: 0px; PADDING-LEFT: 0px; PADDING-RIGHT: 0px; FONT-FAMILY: Helvetica, Arial, sans-serif; BACKGROUND-POSITION: 50% 50%; PADDING-TOP: 0px" class="loading item first last even">
<DIV style="PADDING-BOTTOM: 0px; MARGIN: 0px; PADDING-LEFT: 0px; PADDING-RIGHT: 0px; FONT-FAMILY: Helvetica, Arial, sans-serif; PADDING-TOP: 0px" class="field technicaldata">
<DIV style="PADDING-BOTTOM: 0px; MARGIN: 0px 0px 20px; PADDING-LEFT: 0px; PADDING-RIGHT: 0px; FONT-FAMILY: Helvetica, Arial, sans-serif; FONT-SIZE: 16px; FONT-WEIGHT: bold; PADDING-TOP: 0px" class=label>Technical data</DIV>
<DIV style="PADDING-BOTTOM: 0px; MARGIN: 0px; PADDING-LEFT: 0px; PADDING-RIGHT: 0px; FONT-FAMILY: Helvetica, Arial, sans-serif; PADDING-TOP: 0px" class=value>

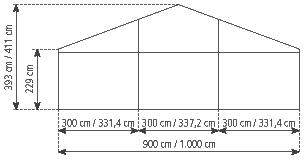

| Clear-span width |
1000 cm |
| Side height |
229 cm
|
| Ridge height |
411 cm
|
Roof pitch
|
20กใ |

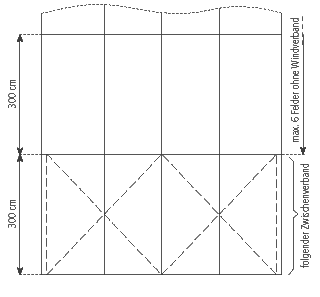

| Bay distance |
300 cm |
| Gable uprights |
2 gable uprights (per end) |
| Longest component |
540 cm |
| Minimum tent length |
600 cm
|
| Maximum tent length |
No limit |
| Main profile |
81 mm x 48 mm x 3 mm (optional 94 mm x 48 mm x 3 mm ) |
| Eave / corner connection |
Internal eave insert |
| Max. allowed wind speed to DIN |
80 km/h |
| Wind Load |
0.3 kN/m² |
| Extension / lean-to options |
Extension (max. span 300 cm and 3 bays, located anywhere, both sides), octagonal with intermediate bays, one or both sides with Mega tents |
| Flooring options |
Woodenfloor with timber or steel sub-construction Aluminium cassettefloor with plywood or full aluminiumboards Compactfloor |
| Cover |
RÖDER No. 1: PVC-coated polyester textile, flame retardant to DIN 4102 B1, M2 |
| Special design |
By using compactfloor or woodenfloor with steel sub-construction and weights anchoring can be omitted Portal beams can be used in place of cross struts | </DIV></DIV>
<DIV style="PADDING-BOTTOM: 0px; MARGIN: 30px 0px 0px; PADDING-LEFT: 0px; PADDING-RIGHT: 0px; FONT-FAMILY: Helvetica, Arial, sans-serif; PADDING-TOP: 0px" class="field image_sideview">
<DIV style="PADDING-BOTTOM: 0px; MARGIN: 0px; PADDING-LEFT: 0px; PADDING-RIGHT: 0px; FONT-FAMILY: Helvetica, Arial, sans-serif; PADDING-TOP: 0px" class=value>  </DIV></DIV></DIV></DIV></DIV></DIV></DIV>
|
|
