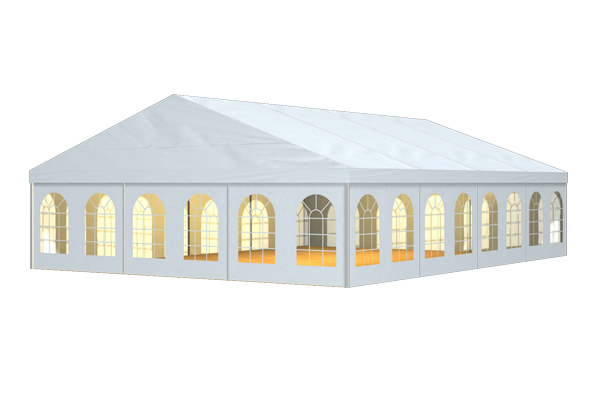

| Party Tent 9M |

<DIV style="TEXT-ALIGN: left; PADDING-BOTTOM: 0px; TEXT-TRANSFORM: none; BACKGROUND-COLOR: rgb(255,255,255); TEXT-INDENT: 0px; MARGIN: 0px 0px 20px; PADDING-LEFT: 0px; PADDING-RIGHT: 0px; FONT: bold 16px Helvetica, Arial, sans-serif; WHITE-SPACE: normal; LETTER-SPACING: normal; COLOR: rgb(0,0,0); WORD-SPACING: 0px; PADDING-TOP: 0px; -webkit-text-stroke-width: 0px" class=label>Technical data</DIV>
<DIV style="TEXT-ALIGN: left; PADDING-BOTTOM: 0px; TEXT-TRANSFORM: none; BACKGROUND-COLOR: rgb(255,255,255); TEXT-INDENT: 0px; MARGIN: 0px; PADDING-LEFT: 0px; PADDING-RIGHT: 0px; FONT: 12px Helvetica, Arial, sans-serif; WHITE-SPACE: normal; LETTER-SPACING: normal; COLOR: rgb(0,0,0); WORD-SPACING: 0px; PADDING-TOP: 0px; -webkit-text-stroke-width: 0px" class=value>

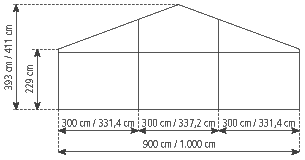

| Clear-span width |
900 cm |
| Side height |
229 cm
|
| Ridge height |
393 cm
|
Roof pitch
|
20กใ |

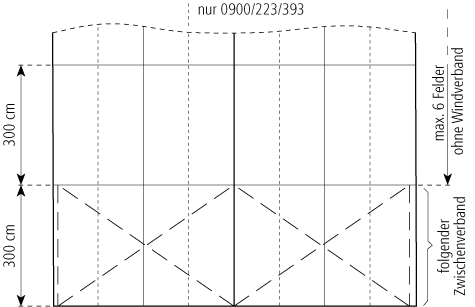

| Bay distance |
300 cm |
| Gable uprights |
2 gable uprights (per end) |
| Longest component |
490 cm |
| Minimum tent length |
600 cm
|
| Maximum tent length |
No limit |
| Main profile |
81 mm x 48 mm x 3 mm (optional 94 mm x 48 mm x 3 mm ) |
| Eave / corner connection |
Internal eave insert |
| Max. allowed wind speed to DIN |
80 km/h |
| Wind Load |
0.3 kN/m² |
| Extension / lean-to options |
Extension (max. span 300 cm and 3 bays, located anywhere, both sides), octagonal with intermediate bays, one or both sides with Mega tents |
| Flooring options |
Woodenfloor with timber or steel sub-construction Aluminium cassettefloor with plywood or full aluminiumboards Compactfloor |
| Cover |
No. 1: PVC-coated polyester textile, flame retardant to DIN 4102 B1, M2 |
| Special design |
By using compactfloor or woodenfloor with steel sub-construction and weights anchoring can be omitted Portal beams can be used in place of cross struts | </DIV> |
|
